Surface Condenser
The Leader of Generator / Petrochemistry Plant

Condenser

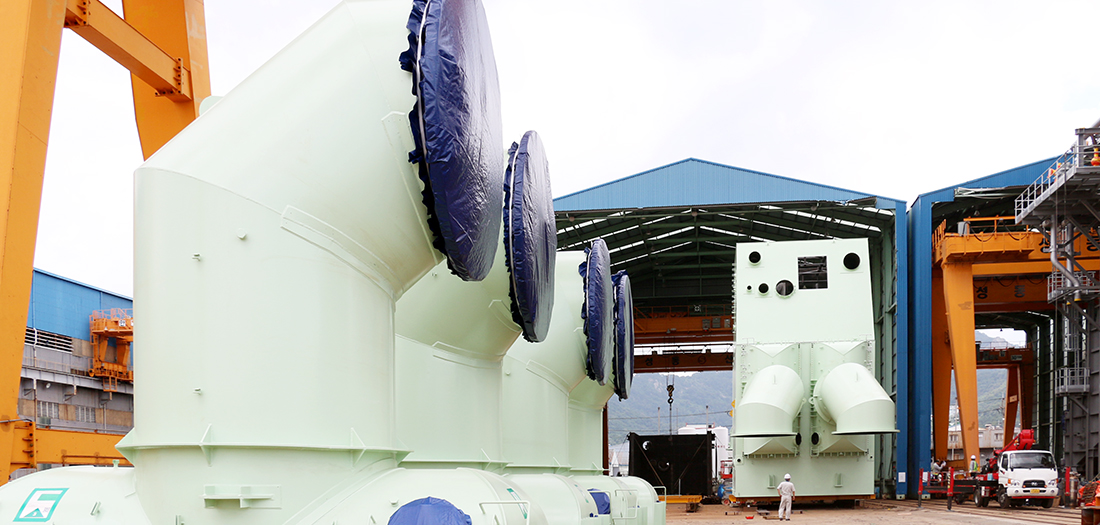

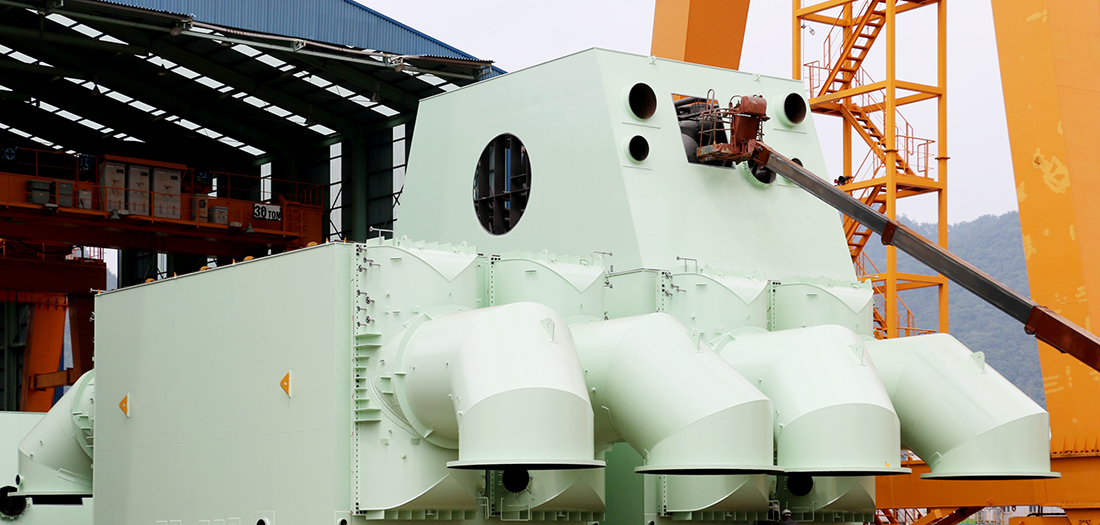

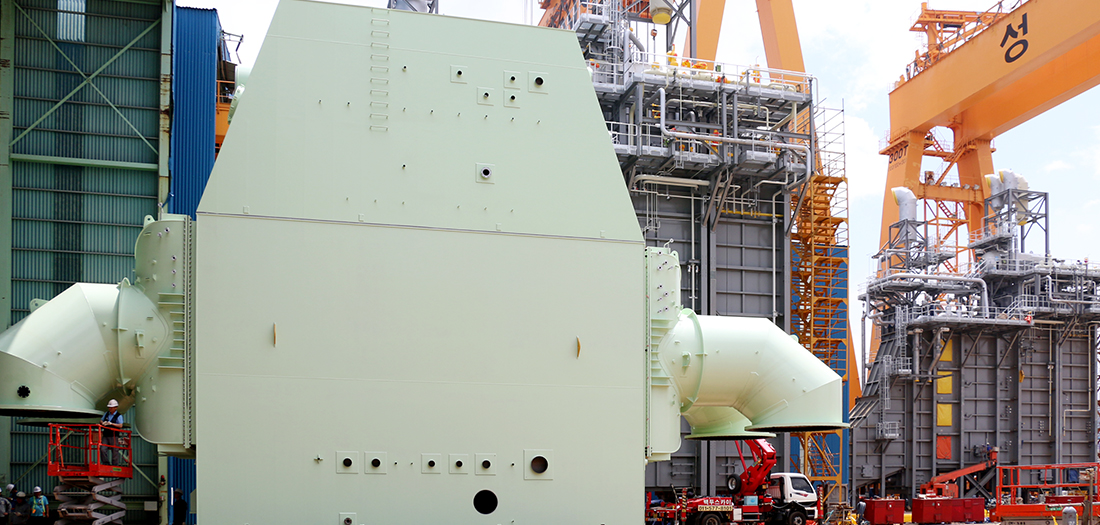

Surface Condenser

  • Surface Condenser convert turbine steam from its gaseous to liquid state at a pressure below atmospheric pressure. And this reapply for water supply of the boiler to increases turbine efficiency
  • SNT Energy is leading the supply of condensers to the global power generation market based on optimal design and accumulated technological competitiveness
  • SNT Energy has sufficient engineering capabilities and efficient manufacturing facilities based on many projects, and also has ability to manufacture condenser, including the core part, Tube.
  • SNT has capacity to supply for more than 100 shells of Surface Condenser annually.
  • Air Cooled Condenser convert turbine steam from its gaseous to liquid state at a pressure below atmospheric pressure.
  • Air-cooled condenser make it possible to opt for a location without a water supply, it’s easier to fulfill environmental requirement.
  • SNT Energy competes with leading foreign air-cooled condenser companies and has competitive technology based on Single Row Condenser (SRC).
  • SNT has capacity to supply for more than 100 modules of Air Cooled Condenser annually.

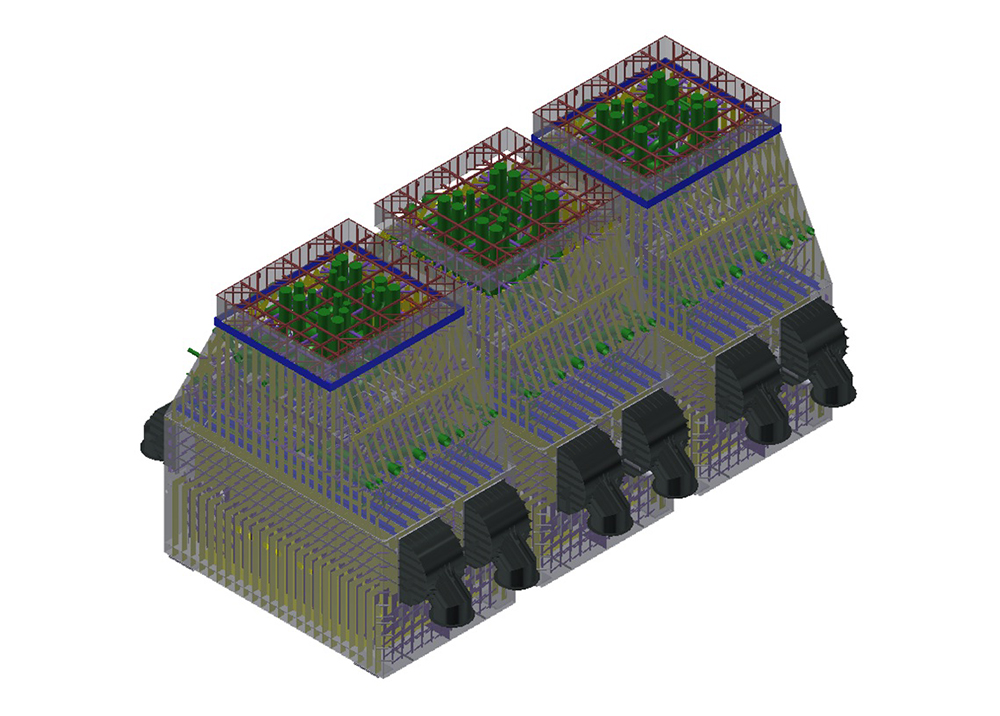

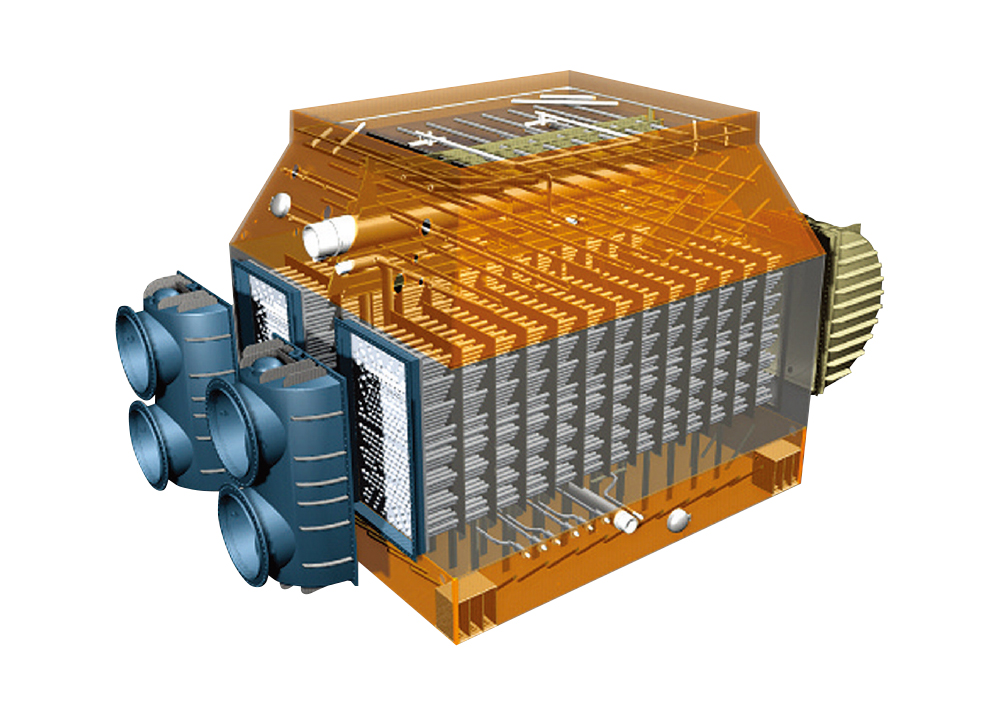

A systematic map of Surface Condenser

Design

    • Shell Type : Rectangular
    • Number of Shells : Single, Twin, Triple Shell
    • Number Of CW Passes : One or Two Passes (or Per Customers Requirements)
    • Number of Pressure Zones: Single Pressure, Dual or Triple Pressure
    • Type of Tubes : Titanium, copper Alloy, Stainless Steel, Alloyed Stainless Steel
    • Number Of CW Passes : Down-flow, Axial flow, Lateral and Double Lateral Flow Design

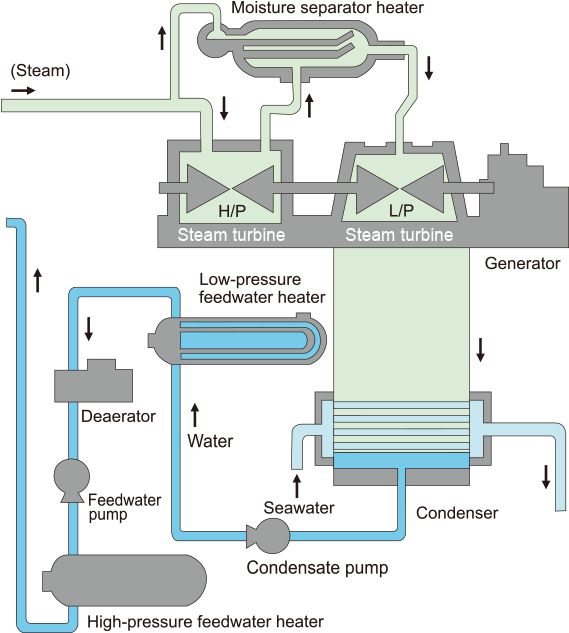

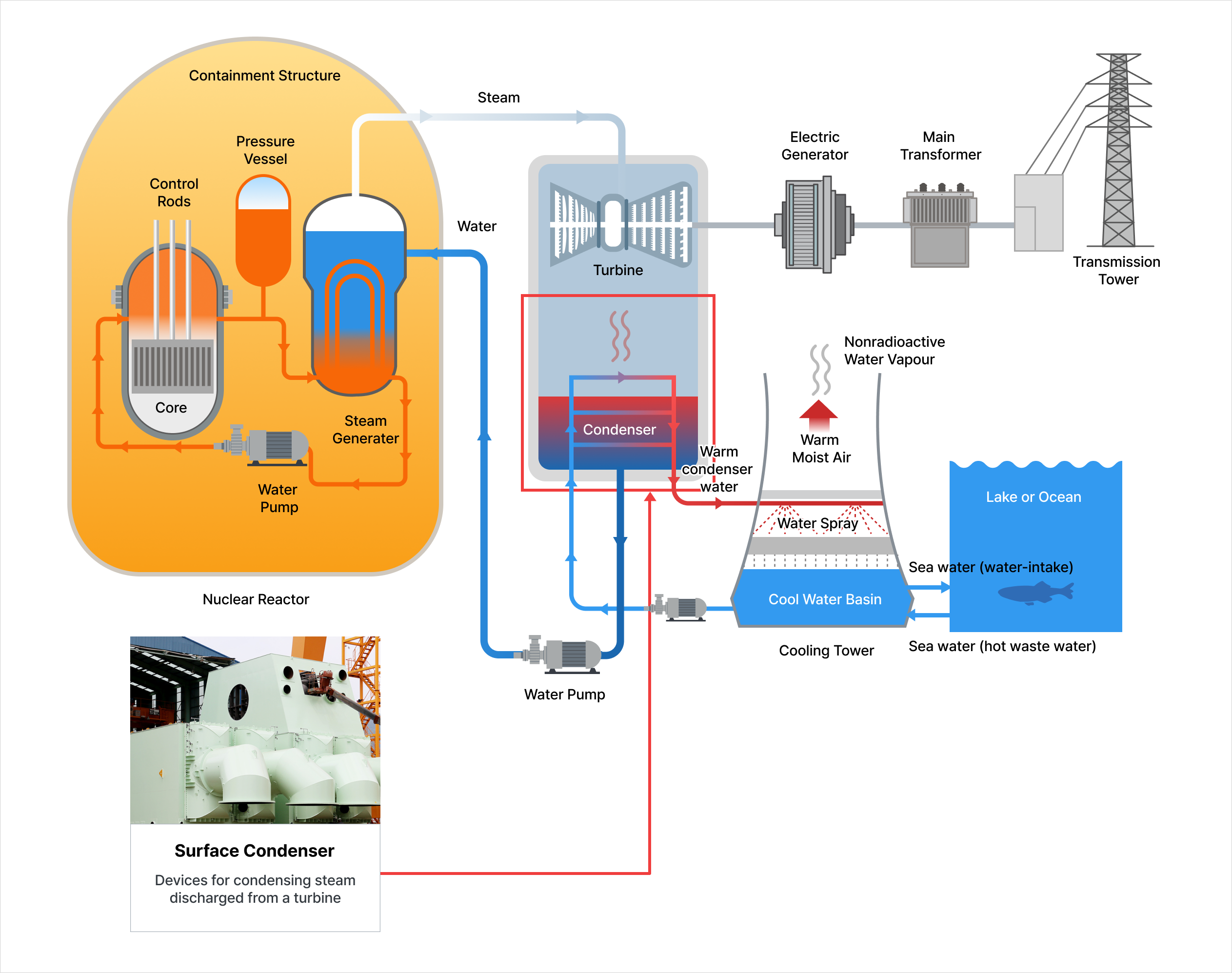

Flow Diagram

Project Performance

No. Contractor Customer Project Item (Unit) Q'ty (Shell) Generating Capacity Location Year
1 SNT Energy KOREA HYDRO & NUCLEAR POWER Co., Ltd. SHIN UL CHIN #1,2 2 6 1,400MW KOREA Dec. '12 ~ Mar. '15
2 SNT Energy HYUNDAI Engineering & Construction Co., Ltd. Termotasajero 2 161.6MW Coal Fired Power Plant 1 1 161.6MW Colombia Nov. '12 ~ Nov. '13
3 SNT Energy HYUNDAI Heavy Ind. Co., Ltd. Jeddah South Power Plant Stage-1 4 8 2,640MW Saudi Arabia May. '13 ~ Oct. '14
4 SNT Energy HYUNDAI Heavy Ind. Co., Ltd. Shuqaiq Steam Power Plant 4 8 2,640MW Saudi Arabia Jan. '15 ~ Jul. '15
5 SNT Energy Foster Wheeler Yanbu #3 5 5 2,500MW Saudi Arabia Mar. '15 ~ Nov. '15
6 SNT Energy SK E&C Goseong Hai Thermal Power Plant 2 4 2,080MW KOREA Dec. '17 ~ Jun. '19
