Heat Recovery Steam Generator
- Combined Cycle Power Plant (CCPP) is an eco-friendly and high-efficiency power plant that uses LNG as its main fuel. It produces primary electricity through a gas turbine, and the high-temperature exhaust gas of the gas turbine is used to generate steam through an Heat Recovery Steam Generator (HRSG), which then produces secondary electricity through a steam turbine. The HRSG, one of the main equipment of CCPP, is a comprehensive facility that requires technology in all areas, including the quality of the high-frequency finned tube that generates steam, the overall engineering capability of the HRSG, and the management of the pressure and non-pressure part manufacturing process.
- SNT Energy possesses the original technology for HRSG engineering and own production capabilities for the pressure & non-pressure parts, including the production of high-frequency finned tubes. This enables us to meet customer’s delivery schedule and quality requirement with excellence. Additionally, SNT Energy has the proven engineering records for O&C Section and Super-Module Type HRSG, and also capability for cutting edge technology including TCA of MPW and I-RAC of Siemens / Hydrogen-Co firing operation / integrated design considering diverter damper, supplement firing and Air Pollution Control System.
- SNT Energy has an annual manufacturing capacity of 12 HRSG units for H-Class gas turbine in both SNT’s domestic and international factory.

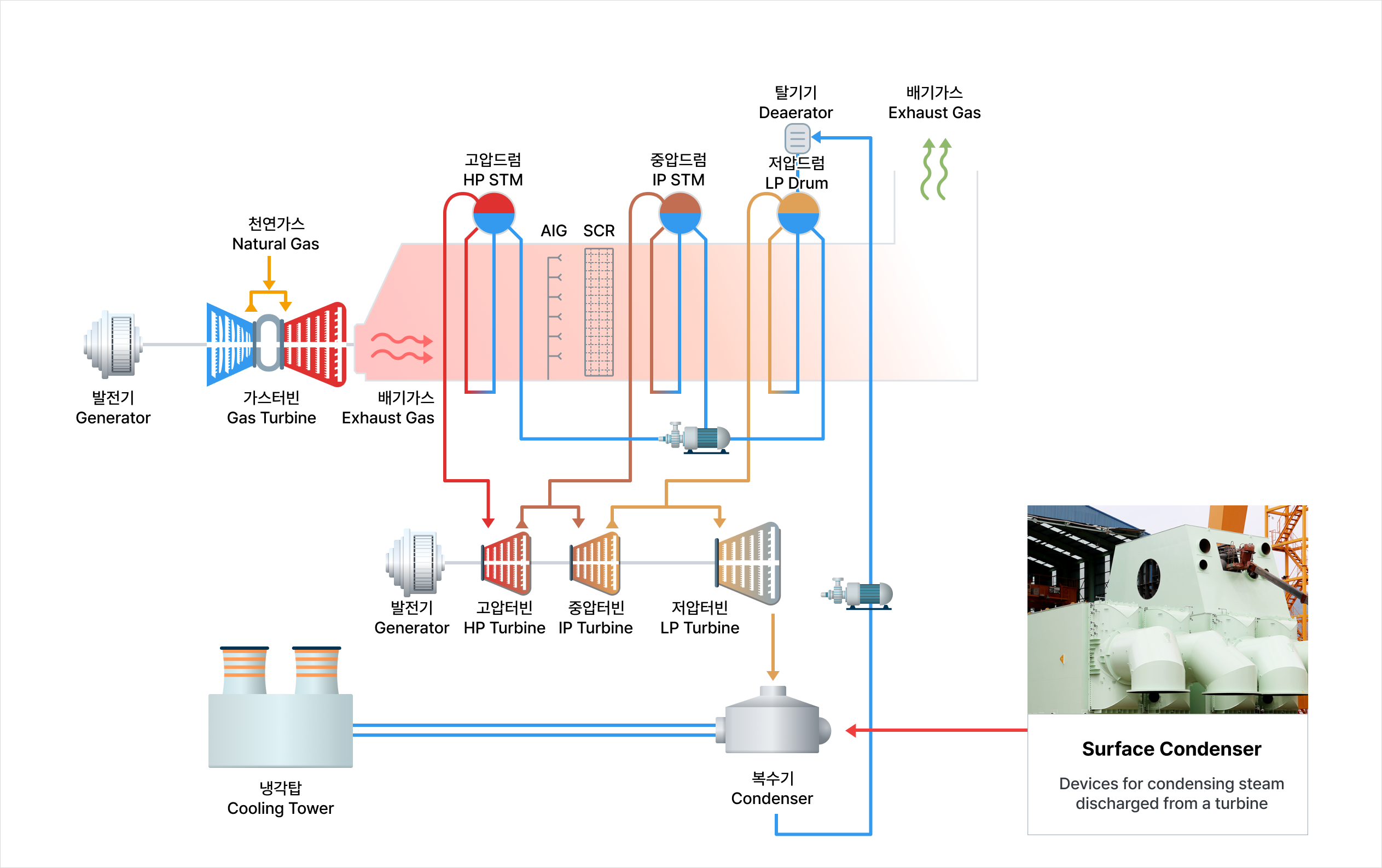

Heat Recovery Steam Generator Schematic Diagram
3D Modelling
-
Recirculation Pump
-
Blow Down Tank
-
Main Fuel Skid
Experience List
| No. | H.R.S.G Type | Client and Site | Gas Turbine | H.R.S.G | Plant | Year of Sold | Commercial Operation Date | Remark | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Supplier | Model | Unit | t/h | kg/㎠a | ℃ | Capacity (MW) |
Layout | ||||||
| 1 | Vertical | Gunsan CCPP South Korea (ROK) KOREA WESTERN POWER Co., Ltd. | MHI | 501G | 2 | 259 | 128 | 567 | 780 | 2-2-1 | 2007. May | 2010. May | Triple Pressure, Reheat, Boiler Feedwater Pump, SCR Provision, H.R.S.G Building, Natural Circulation |
| 58 | 45 | 284 | |||||||||||
| 259 | 35 | 568 | |||||||||||
| 39 | 7 | 253 | |||||||||||
| 2 | Vertical | Incheon #3 CCPP South Korea (ROK) KOREA MIDLAND POWER Co., Ltd. | GE | 7FA | 2 | 187 | 108 | 568 | 500 | 2-2-1 | 2010. Dec | 2012. Dec | Retrofit Project HP Superheater, HP Economizer, DH Economizer, Steel Structure for H.R.S.G and Building, Casing, Safety Valve |
| 24 | 27 | 313 | |||||||||||
| 22 | 5 | 147 | |||||||||||
| 3 | Horizontal | Takoradi T2 Power Plant Expansion Ghana KEPCO-ENC | GE | 9E | 2 | 179.3 | 83.6 | 537 | 330 | 2-2-1 | 2012. July | 2014. Jun | Add-on, Dual Pressure with Sootblower, Bypass Stack & Diverter Damper Sys. |
| 40.3 | 5.6 | 213 | |||||||||||
| 4 | Horizontal | GE INPEX Ichthys Onshore LNG Facilities Australia GE Energy | GE | 6B | 5 | 145 | 61 | 533 | 500 | 5-5-3 | 2013. Jan | Delivery Completed | Single Pressure, Duct Burner, Supermodule Supply (H.R.S.G Full Assemblies) |
| 5 | Horizontal | ARAMCO Cogen (HGP site) Saudi Arabia Samsung Engineering Co., Ltd. | GE | 7EA | 2 | 137 | 50 | 397 | 170 | 2-2 No ST |
2013. Nov | 2016. Dec | Single Pressure, Duct Burner |
| 6 | Horizontal | ARAMCO Cogen (ABQ site) Saudi Arabia Samsung Engineering Co., Ltd. | GE | 7FA | 2 | 302 | 50 | 390 | 370 | 2-2 No ST |
2013. Nov | 2017. Jun | Single Pressure, Duct Burner |
| 7 | Horizontal | ARAMCO Cogen (RTR site) Saudi Arabia Samsung Engineering Co., Ltd. | GE | 7FA | 2 | 302 | 50 | 400 | 370 | 2-2 No ST |
2013. Nov | 2017. Aug | Single Pressure, Duct Burner |
| 8 | Horizontal | Young-nam CCPP South Korea Daewoo E&C | MHI | 501J | 1 | 293 | 154 | 602 | 400 | 1-1-1 | 2015. May | 2017. Oct | Triple Pressure, Reheater, SCR System |
| 64 | 42 | 291 | |||||||||||
| 271 | 36 | 602 | |||||||||||
| 31 | 7 | 253 | |||||||||||
| 9 | Horizontal | Nam-Jeju CCPP South Korea Daewoo E&C | GE | 6F.01.03 | 2 | 76.09 | 126 | 581.8 | 160 | 2-2-1 | 2018. Sep | Engineering in Progress | Dual Pressure, SCR, YPRS, Dust Collection System |
| 8.15 | 6.9 | 269 | |||||||||||
| 10 | Horizontal | YEOJU CCPP SIEMENS HTT |
SIEMENS | SGT6-9000HL | 2 | - | - | - | 1,000 | 1-1-1 | 2019. Nov | - | Triple Pressure, Reheater |
| - | - | - | |||||||||||
| - | - | - | |||||||||||
| - | - | - | |||||||||||
| 11 | Horizontal | CHUNGJU CCPP SIEMENS HTT |
SIEMENS | SGT6-9000HL | 1 | - | - | - | 500 | 1-1-1 | 2019. Feb | - | Triple Pressure, Reheater |
| - | - | - | |||||||||||
| - | - | - | |||||||||||
| - | - | - | |||||||||||
| 12 | Horizontal | DAEGU CHP SOUTH KOREA LOTTE E&C | MPW | M501 GAC | 1 | 244 | 161.7 | 567.2 | 280 | 1-1-1 | 2021. May | - | Triple Pressure, Reheater, SCR and YPRA |
| 278 | 30.7 | 566.4 | |||||||||||
| - | - | - | |||||||||||
| 31 | 4.8 | 251.6 | |||||||||||
| 13 | Horizontal | CHEONGJU CHP SOUTH KOREA LOTTE E&C | MPW | M501 GAC | 1 | 244 | 161.7 | 567.2 | 280 | 1-1-1 | 2021. May | - | Triple Pressure, Reheater, SCR and YPRA |
| 278 | 30.7 | 566.4 | |||||||||||
| - | - | - | |||||||||||
| 31 | 4.8 | 251.6 | |||||||||||
